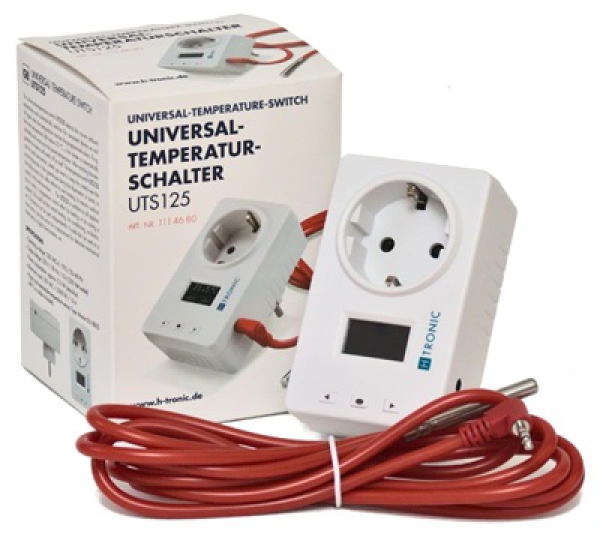

Universal-Temperature Switch H-TRONIC UTS125 – Range: –55 to +127.0 °C, Universal Temperature Switch

Note: Not required for the SMOKI electric heater, as the SMOKI electric heater already has a built-in temperature switch.
Product information: ‘H-TRONIC UTS125 Universal Temperature Switch’
The universal temperature switch can be used in conjunction with the electric heater to maintain a constant temperature inside the smoking cabinet.
The temperature switch uses its sensor to detect the current internal temperature of the smoking cabinet and automatically switches the connected heater on and off as required.

Technical specifications:

– Operating voltage: 230 VAC/50 – 60 Hz
– Output voltage: 230 V/50 Hz/10 A (for a 230-volt socket)
– Power consumption: approx. 0.3 VA (standby)
– Maximum connected load: 230 VAC / 2300 VA / 10 A
– Sensor measuring range: –55 to +127.0 °C
– Accuracy within the range (–55 °C … –10 °C: ±2 °C
– within the range –10 °C … +85 °C: ±0.5 °C
– within the range +85 °C … +127 °C: ±2 °C
– Resolution: 0.1 °C
– Protection class: IP 20
– Ambient temperature: –10 to +40 °C
– Silicone cable temperature range: –55 to +200 °C
– Dimensions excluding plug (W x H x D): 60 x 98 x 40 mm
– Temperature sensor encapsulated in a waterproof housing (dimensions: 30 x 9 mm)
– Display can be rotated 180° using the buttons
– Temperature sensor type: Maxim DS 18B20 (with 2.0 m cable – included)
– Min./Max. display
– Switching temperature freely adjustable from –55 to +127 °C in 0.1 °C increments
– Hysteresis (switching accuracy) freely adjustable (0.1 °C to 10 °C)
– Remote measurement up to 50 m
– Sensor monitoring for short circuits
– Sensor monitoring for open circuits
– Output switches off in the event of a sensor fault
– Operation requiring no user intervention or monitoring
– Adjustable for heating or cooling
– LCD display for temperature setting, relay (socket) on, sensor fault, heating, cooling
– Programmed switching thresholds are retained even in the event of a mains power failure
– Automatic restart following a power failure

WEEE number:
DE 27034732
